Hi all,
I'm just going through this for the first time on this bike and have got a little confused with the workshop manual instructions on the order of adjustments. I think there may be a print error in the manual and want to make sure I'm adjusting the right valves. On the head are stamped letters A-Cyl 1 & 2 Ex, B-Cyl 3 & 4 Ex, C-Cyl 1 & 2 In and D-Cyl 3 & 4 In, the manual only mentions letters C and D. I can understand the order using only C & D reference, the confusion comes with the illustration and note. I've aligned the crank in position as shown on bottom of page 1 attached and the bottom paragraph tells me to adjust valves marked with a C on Cyls 1, 2 and 3, however the drawing on the top of page one shows Cyl 1 on the left marked as D, which contradicts the note. So I think either or the note or the drawing is marked incorrectly, either the note should be Cyl 4, 2 and 3, or on the drawing Cyl 1 and 4 have been mis-labelled, 1 should be C and 4, D. The latter seems to make more sense to me.
Does that make sense, has anyone else noticed this? Can anyone clarify?
At the moment I'm thinking I could just do a dry run as to what I think the order should be and if the gaps feel right/close, then the order is right and I can make the minor adjustments.
Any advice will be much appreciated.
Thanks,
Peter

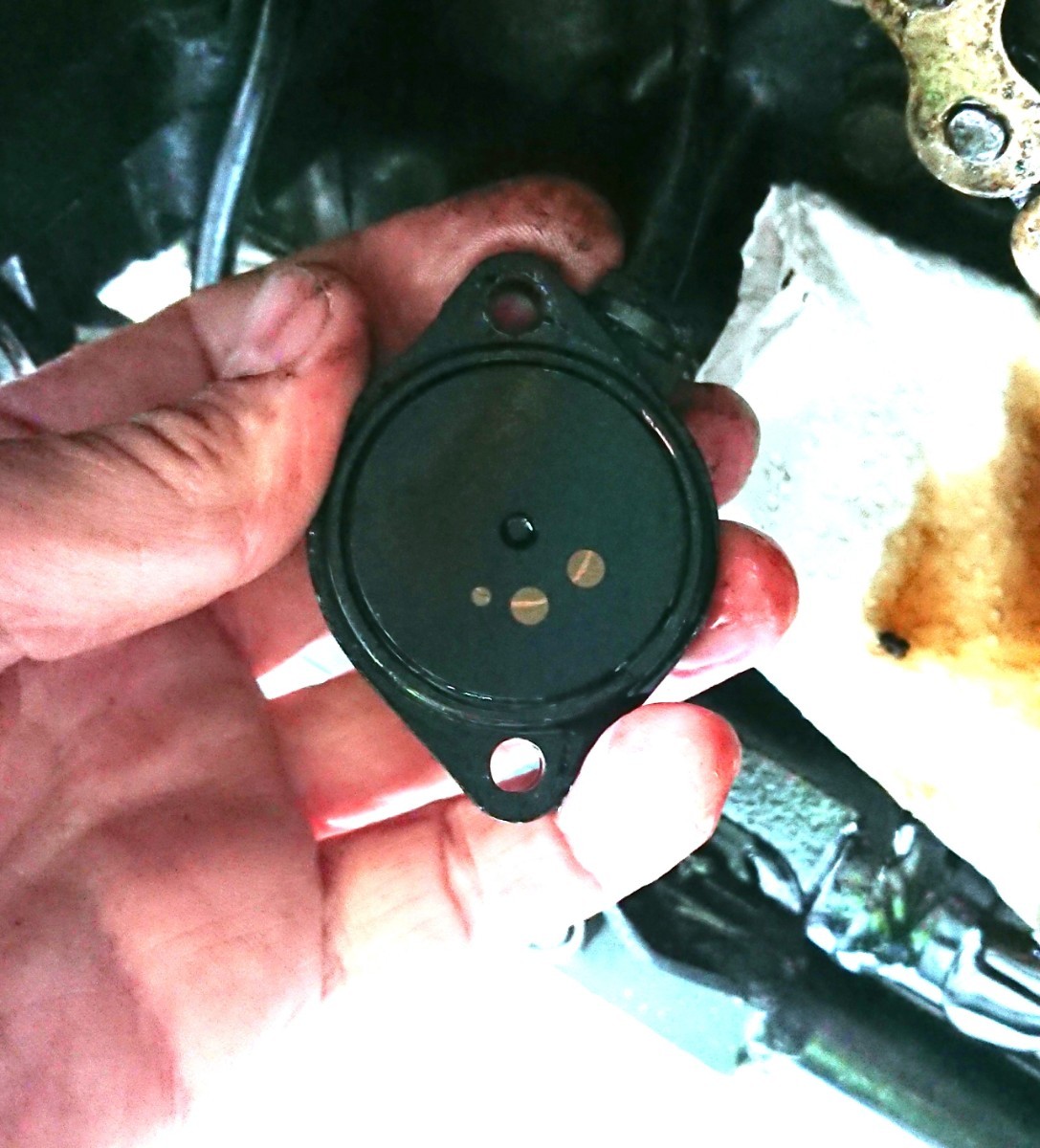

PS. On another topic my neutral indicator switch has gone, when I removed it, it has 2 brass/copper points on it, but the only replacement ones I can find have 6 points on them, which I assume is for bikes with a gear indicator on the instrument panel, anyone know if these will work on mine as well? Thanks.
